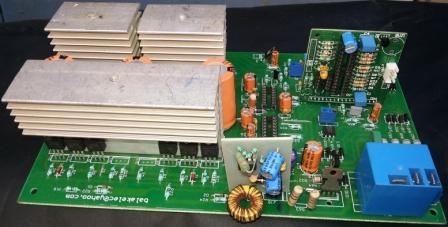

Pure Sine Wave Inverter Kit

its Products, its Capabilities

We have designed PCB for Pure Sine Wave Digital Inverter Kit, that can be fitted in normal inveters modules to make the inverter more powerful, equipped with modern protections to avoid from hazzards.

• Auto Cut off on Low Voltage 130V and High Voltage 270V for High level Protection.

• Operational Voltage Range 135V to 260V.

• Inverter Output: 220V Constant.

• Auto Cut off on Battery Power remaining 9.5 V, to protect Deep Battery Discharge.

• Warning Buzzer rings at low Voltage remained for Battery at 10.5V.

• Warning Buzzer rings at Overload detected.

• Charging Auto Cut Off, When Charging completes. to save electricity consumption. to improve battery life.

• Charging cut off for normal battery at 14V and enters into TRICKLE Mode 13.20V. to improve battery power.

• Charging cut off for tubular battery at 14.8V and enters into TRICKLE Mode 13.20V. to improve battery power.

• Overload Protection Management. to provide smoother functioning of your digital inverter. it can auto-start when the load gets balanced.

• Short circuit protection for mosfeet. (only available for backup mode).

• Short circuit fuse blown when case of main supply mode. it is powerful safeguard for protecting your appliances and household material in case of short circuit.
